Project: Audi Dealership, Futura Park, Ipswich, Suffolk


  • Client: Audi UK
  • Main Contractor: Barnes Construction
  • Architect: David Clarke & Associates
  • Order Value: £600K
  • Start Date: May 2016
  • Completion Date: November 2016

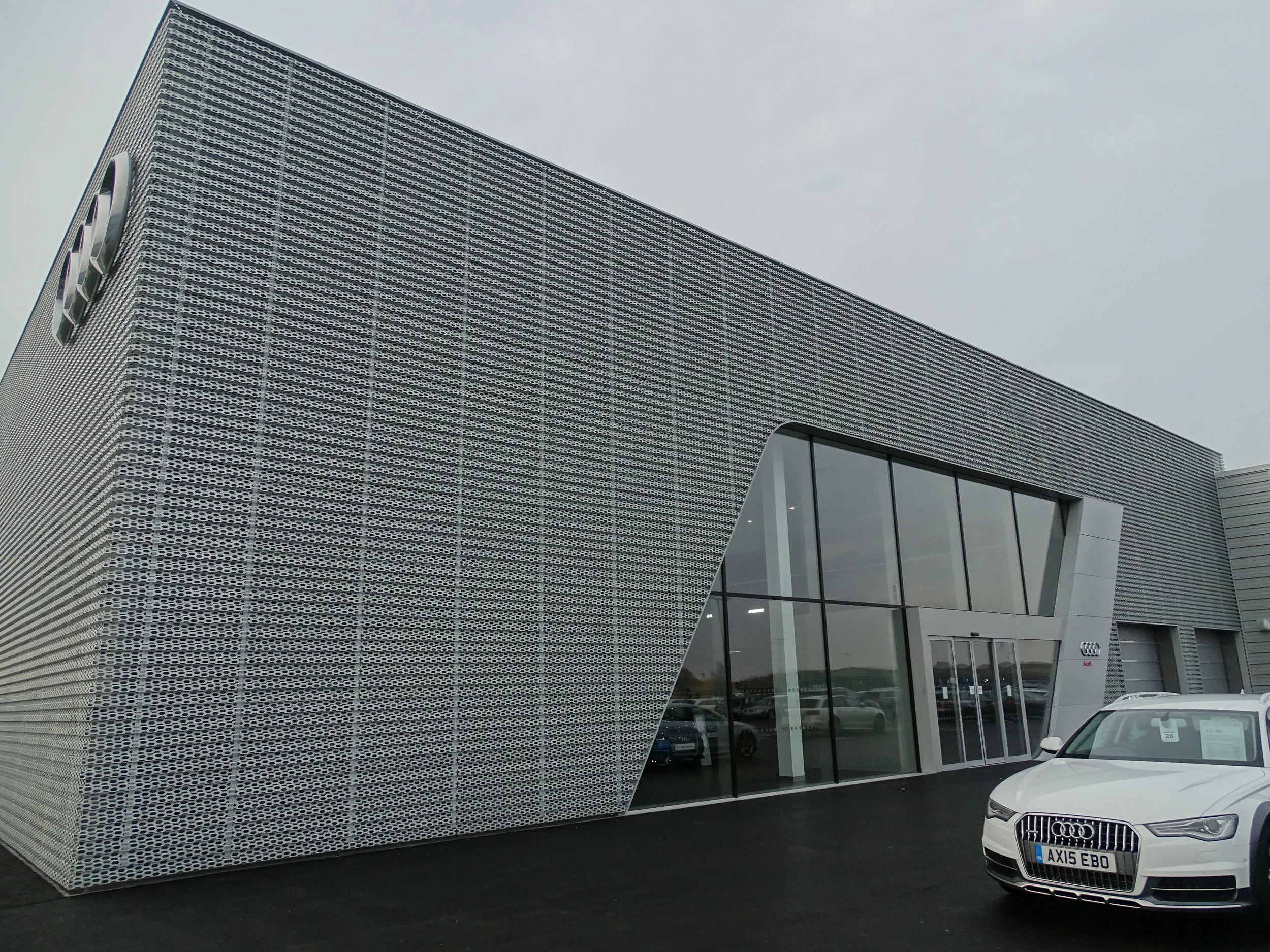

Project Brief: To supply and install Kingspan TopDek composite roof panels with Trocal single-ply membrane and Kingspan Five-Crown composite wall panels with an EDM Spanwall perforated anodised aluminium rainscreen façade on an aluminium bar and bracket framework to the showroom, Kingspan Lo-Pitch composite roof panels with integrated rooflights to the workshop, Kingspan RW composite roof panels to the valet building and Kingspan RW composite wall panels to the workshop and valet building.

This project is the largest aluminium rainscreen installation undertaken by ourselves, the system was simple to install which aided in good progress and overall very aesthetically pleasing when combined with the bespoke PPC aluminium curved flashings and trims, the project was handed over with zero defects and achieved a very good air test rating.
